How to make Image to text converter application

1. Set up your Android project in Android Studio.

2. Add the necessary dependencies in your app's build.gradle file:

implementation 'com.google.android.gms:play-services-vision:20.1.3'

3. Create an activity or fragment in your app where you want to implement the image-to-text functionality.

4. In the layout XML file for the activity or fragment, add a Button and an ImageView element to allow the user to select an image and display the selected image.

5. In your activity or fragment class, declare the necessary variables:

private static final int PICK_IMAGE_REQUEST = 1;
private Bitmap selectedImage;
private TextView textView;
ImageView imageView;

6. Implement the image selection functionality by handling the button click event and launching the image picker:

private void selectImage() {
    Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
    intent.setType("image/*");
    startActivityForResult(intent, PICK_IMAGE_REQUEST);
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    super.onActivityResult(requestCode, resultCode, data);

    if (requestCode == PICK_IMAGE_REQUEST && resultCode == RESULT_OK && data != null && data.getData() != null) {
        Uri imageUri = data.getData();

        try {
            selectedImage = MediaStore.Images.Media.getBitmap(getContentResolver(), imageUri);
            imageView.setImageBitmap(selectedImage);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

7. Next, implement the image-to-text conversion using the Text Recognition API:

// Inside your activity or fragment class
// ...

    private void convertImageToText() {
        if (selectedImage != null) {
            TextRecognizer textRecognizer = new TextRecognizer.Builder(getApplicationContext()).build();

            if (!textRecognizer.isOperational()) {
                Toast.makeText(this, "Text recognizer could not be set up on your device", Toast.LENGTH_SHORT).show();
                return;
            }

            Frame imageFrame = new Frame.Builder()
                    .setBitmap(selectedImage)
                    .build();

            SparseArray<TextBlock> textBlocks = textRecognizer.detect(imageFrame);

            StringBuilder stringBuilder = new StringBuilder();

            for (int i = 0; i < textBlocks.size(); i++) {
                TextBlock textBlock = textBlocks.valueAt(i);
                stringBuilder.append(textBlock.getValue());
                stringBuilder.append("\n");
            }

            String extractedText = stringBuilder.toString();

            // Do something with the extracted text, such as displaying it in a TextView
            textView.setText(extractedText);
        }
    }

8. Finally, wire up the button click events to call the respective methods:

// Inside your activity or fragment class
// ...
        textView = findViewById(R.id.textView);
        imageView = findViewById(R.id.imageView);
        Button buttonConvertToText = findViewById(R.id.button);
        Button buttonSelectImage = findViewById(R.id.selectimg);
        buttonSelectImage.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                selectImage();
            }
        });

        buttonConvertToText.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                convertImageToText();
            }
        });

Full code

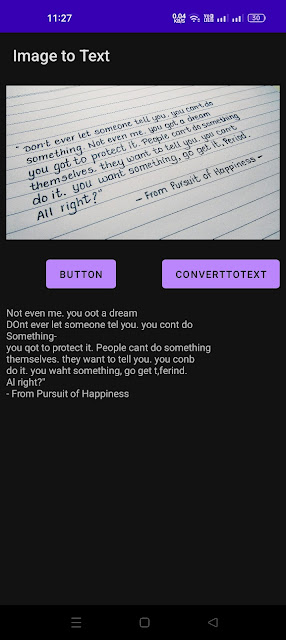

That's it! You should now have a basic image-to-text functionality in your Android app using the Text Recognition API. Remember to handle any necessary permissions in your app's manifest file, such as READ_EXTERNAL_STORAGE for accessing the image from the gallery.

package com.devstudio.imagetotext;

import android.content.Intent;
import android.graphics.Bitmap;
import android.net.Uri;
import android.os.Bundle;
import android.provider.MediaStore;
import android.util.SparseArray;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

import com.google.android.gms.vision.Frame;
import com.google.android.gms.vision.text.TextBlock;
import com.google.android.gms.vision.text.TextRecognizer;

import java.io.IOException;

public class MainActivity extends AppCompatActivity {
    private static final int PICK_IMAGE_REQUEST = 1;
    private Bitmap selectedImage;
    private TextView textView;
    ImageView imageView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Inside your activity or fragment class
// ...
        textView = findViewById(R.id.textView);
        imageView = findViewById(R.id.imageView);
        Button buttonConvertToText = findViewById(R.id.button);
        Button buttonSelectImage = findViewById(R.id.selectimg);
        buttonSelectImage.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                selectImage();
            }
        });

        buttonConvertToText.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                convertImageToText();
            }
        });

    }

    private void selectImage() {
        Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
        intent.setType("image/*");
        startActivityForResult(intent, PICK_IMAGE_REQUEST);
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);

        if (requestCode == PICK_IMAGE_REQUEST && resultCode == RESULT_OK && data != null && data.getData() != null) {
            Uri imageUri = data.getData();

            try {
                selectedImage = MediaStore.Images.Media.getBitmap(getContentResolver(), imageUri);
                imageView.setImageBitmap(selectedImage);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

// Inside your activity or fragment class
// ...

    private void convertImageToText() {
        if (selectedImage != null) {
            TextRecognizer textRecognizer = new TextRecognizer.Builder(getApplicationContext()).build();

            if (!textRecognizer.isOperational()) {
                Toast.makeText(this, "Text recognizer could not be set up on your device", Toast.LENGTH_SHORT).show();
                return;
            }

            Frame imageFrame = new Frame.Builder()
                    .setBitmap(selectedImage)
                    .build();

            SparseArray<TextBlock> textBlocks = textRecognizer.detect(imageFrame);

            StringBuilder stringBuilder = new StringBuilder();

            for (int i = 0; i < textBlocks.size(); i++) {
                TextBlock textBlock = textBlocks.valueAt(i);
                stringBuilder.append(textBlock.getValue());
                stringBuilder.append("\n");
            }

            String extractedText = stringBuilder.toString();

            // Do something with the extracted text, such as displaying it in a TextView
            textView.setText(extractedText);
        }
    }


}
